Nollie 16 Installation Guide
Connecting 16 addressable channels, dual Molex/XT30 power, and chassis mounting.
- Both Molex power cables must be connected to provide sufficient current.
- Initial verification lights up connected components in green breathing effect.
- Always unplug the computer power cord when attaching or rearranging ARGB devices.

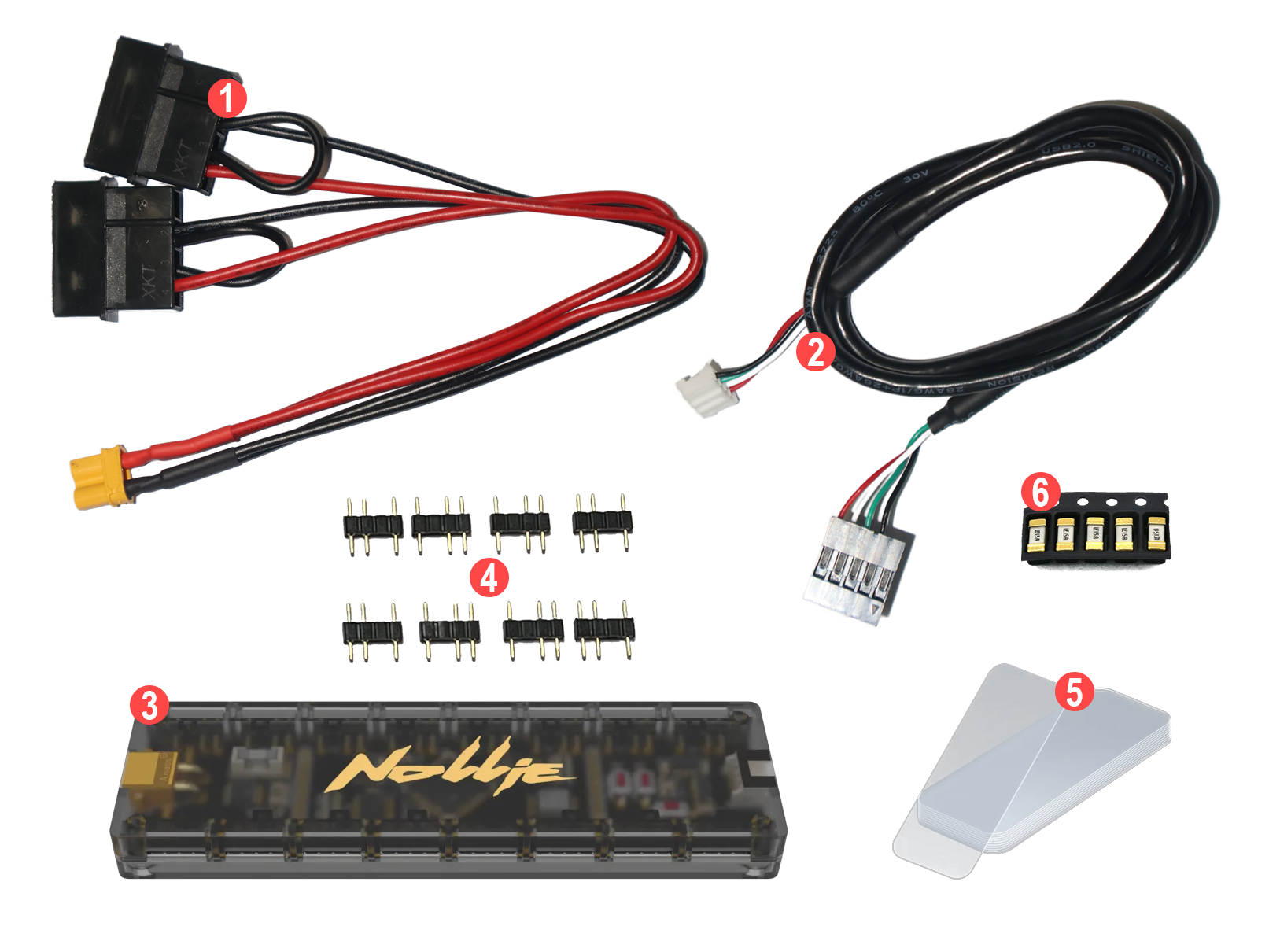

Package Content
- Molex to XT30 cable ×1
- USB 2.0 Internal Motherboard connector to USB PH2.0 cable (50cm) ×1
- Nollie 16CH Controller ×1
- 5V 3-pin Female to Male adapter ×16
- Clear Acrylic Double-sided adhesive tape
- Littelfuse 15A Nano² Fast-Acting SMD Fuse (included only with purchases from the official store)
- USB-A to USB PH2.0 cable ×1 (included only with purchases from the official store)
Device Installation
-

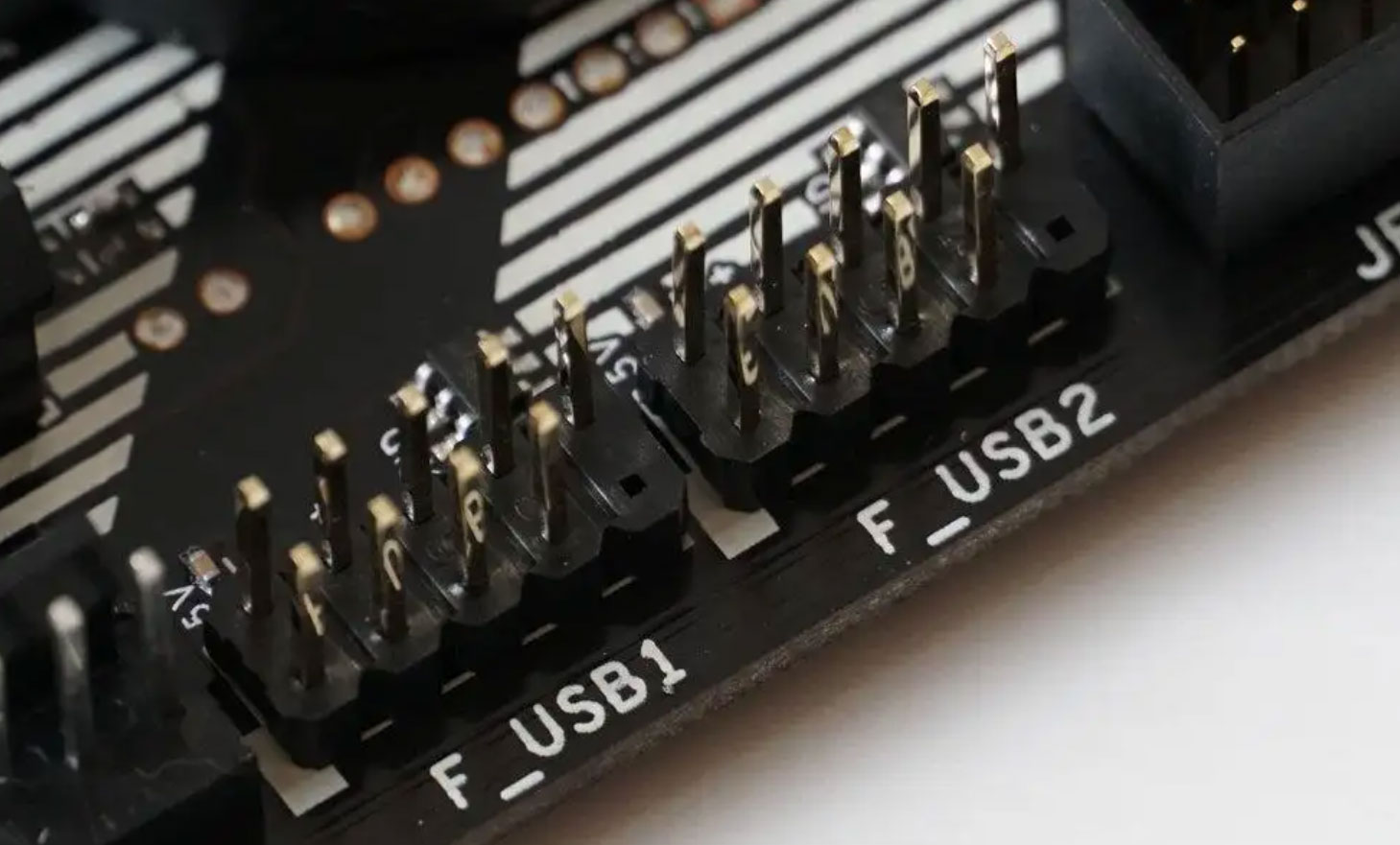

Plug the controller’s USB data cable 2️⃣ to the motherboard USB 2.0 9-pin interface.
-

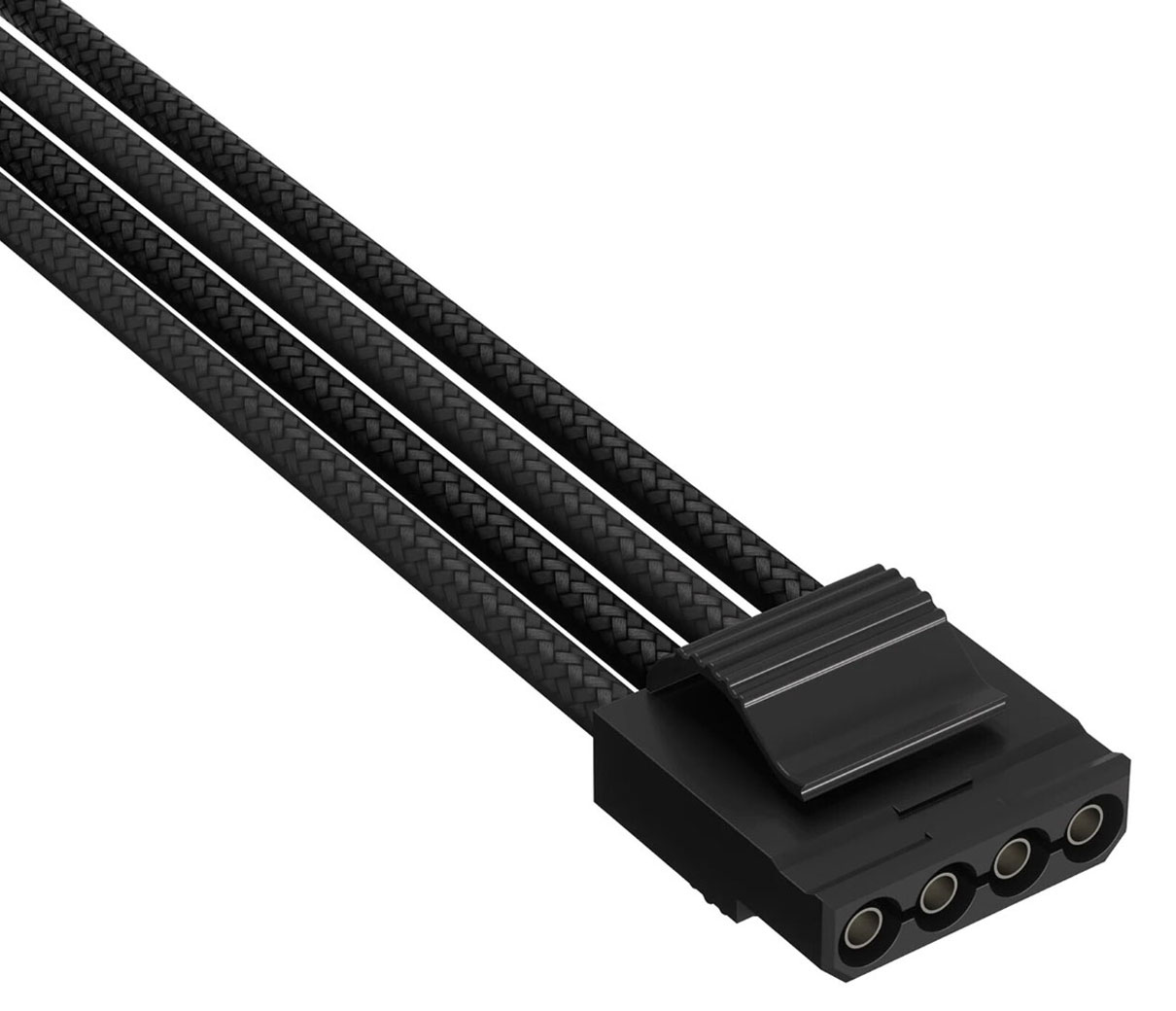

Plug the controller’s Molex power cable 1️⃣. Please note that both Molex power connectors must be connected.
-

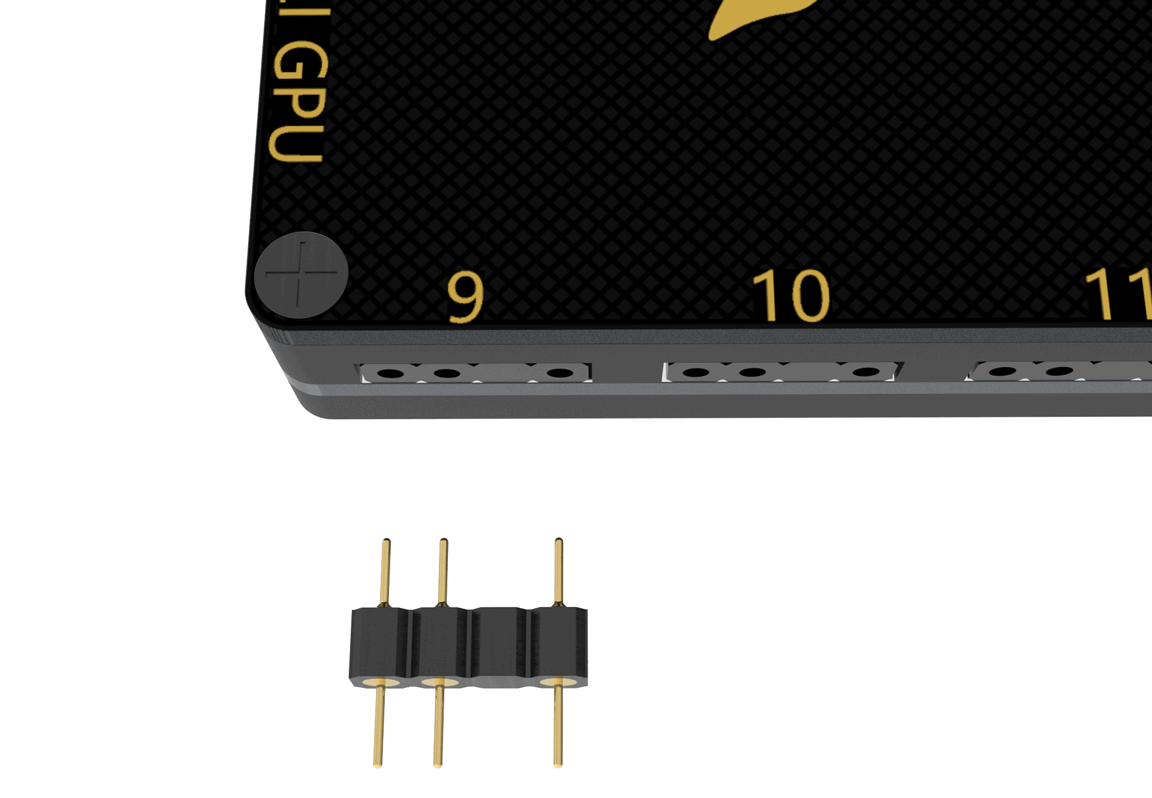

Take one of your components (LED strip or fan), plug to the Nollie controller 3️⃣ with a Female to Male adapter 4️⃣. This step is to test whether it works properly.
-
Turn on the computer: your component will immediately light up with green breathing effect, indicating proper installation.
-
Turn off the computer, install all other components.
-
If it does not light up, please do not continue to operate and contact support immediately.
Precautions
-

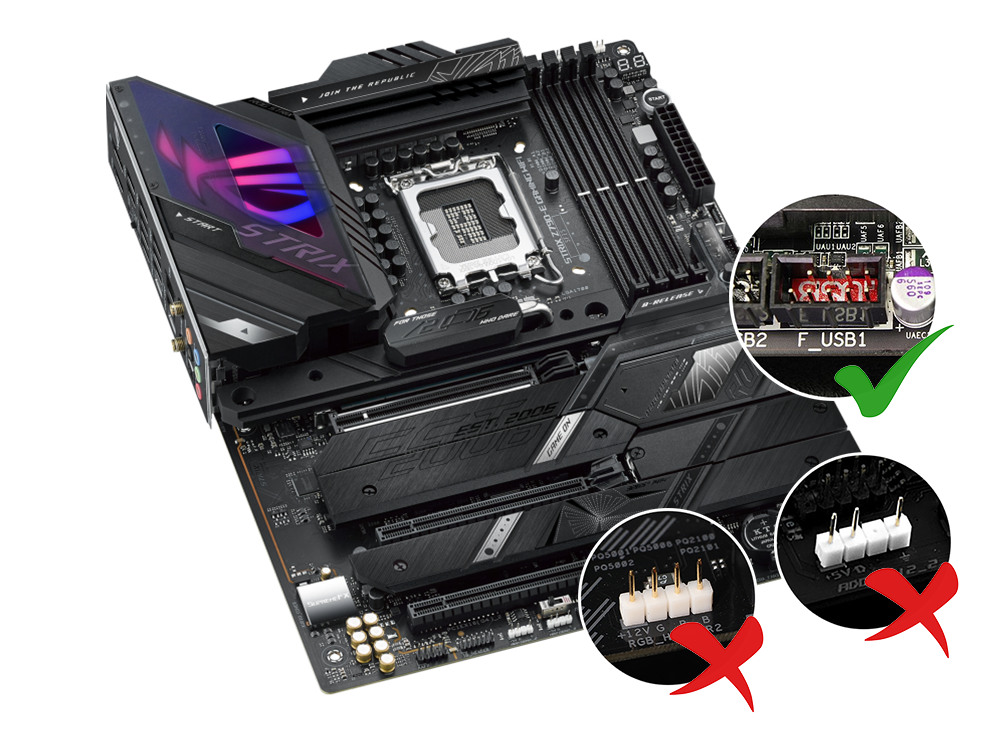

Do not plug the 9-pin USB cable into other interfaces.
-

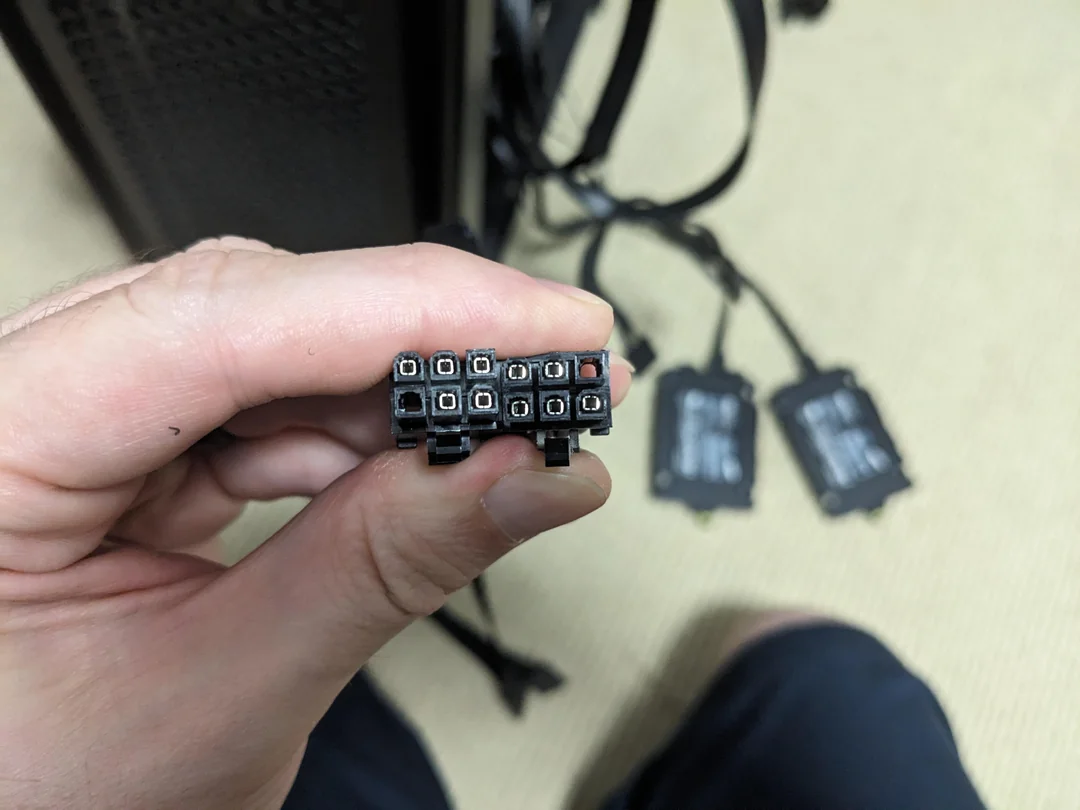

Do not mix cables for fully modular PSUs (e.g. ASUS PSU with Corsair cable).
Photo credit: CoffeeStax -
Do not plug the motherboard 5V 3-pin into the controller.
-
Do not plug the motherboard 4-pin RGB into the controller.
-
When installing ARGB components, be sure to turn off the power and unplug the power cord.
