Nollie 8 Installation Guide
Wiring dual SATA power, 9-pin USB 2.0 internal header, and preliminary testing.
- Both SATA power cables must be connected for stable operation.
- Test with a single component first: successful install lights up with green breathing effect.
- Do not mix cables across modular power supply brands.

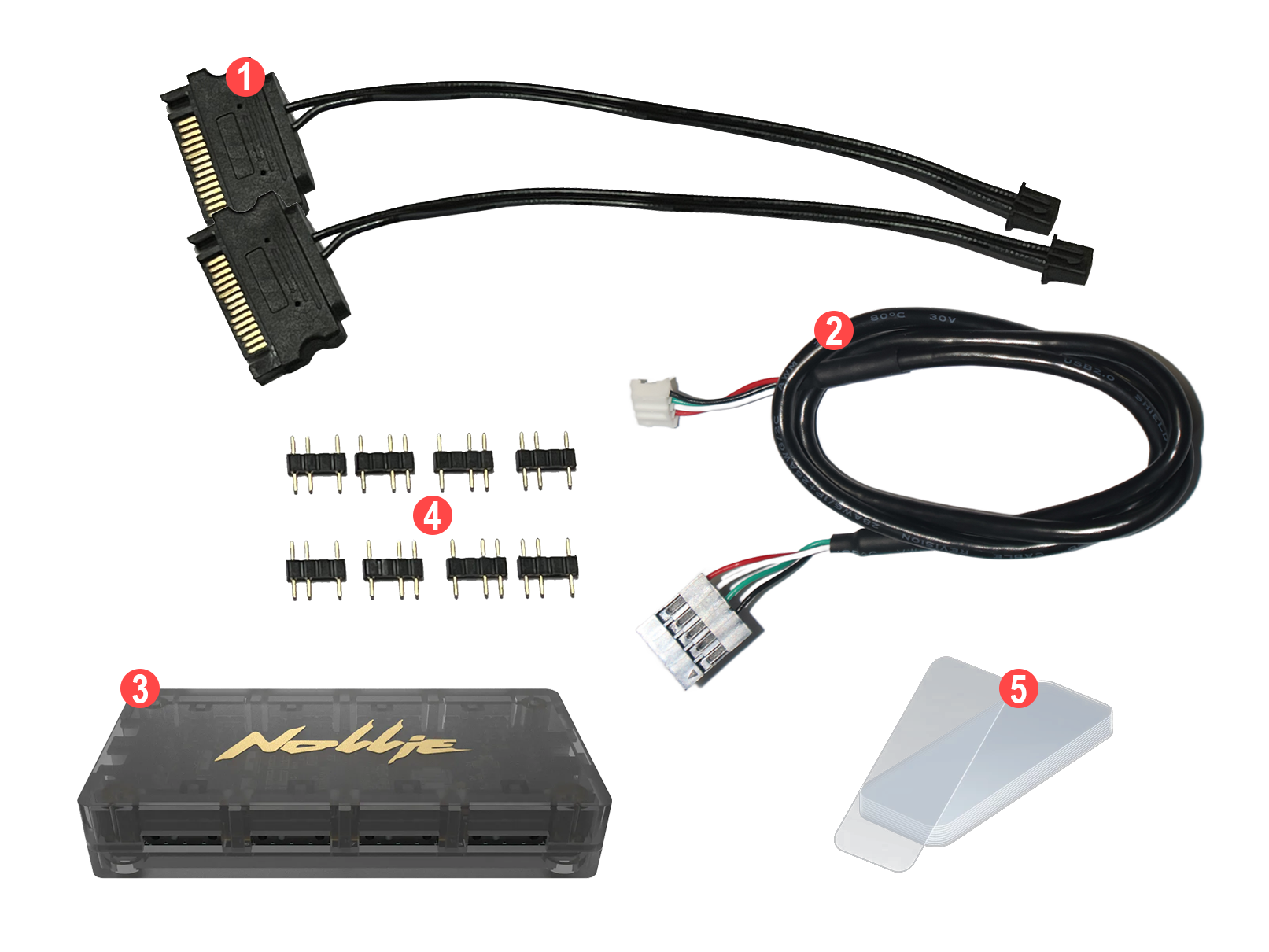

Package Content
- SATA to XH2.54 cable ×2
- USB 2.0 Internal Motherboard connector to USB PH2.0 cable (50cm) ×1
- Nollie 8CH Controller ×1
- 5V 3-pin Female to Male adapter ×8
- Clear Acrylic Double-sided adhesive tape
Device Installation
The controller only needs to be connected to the motherboard USB 2.0 9-pin interface and power supply of the motherboard.
-
Plug the controller’s USB data cable 2️⃣ to the motherboard USB 2.0 9-pin interface.
-

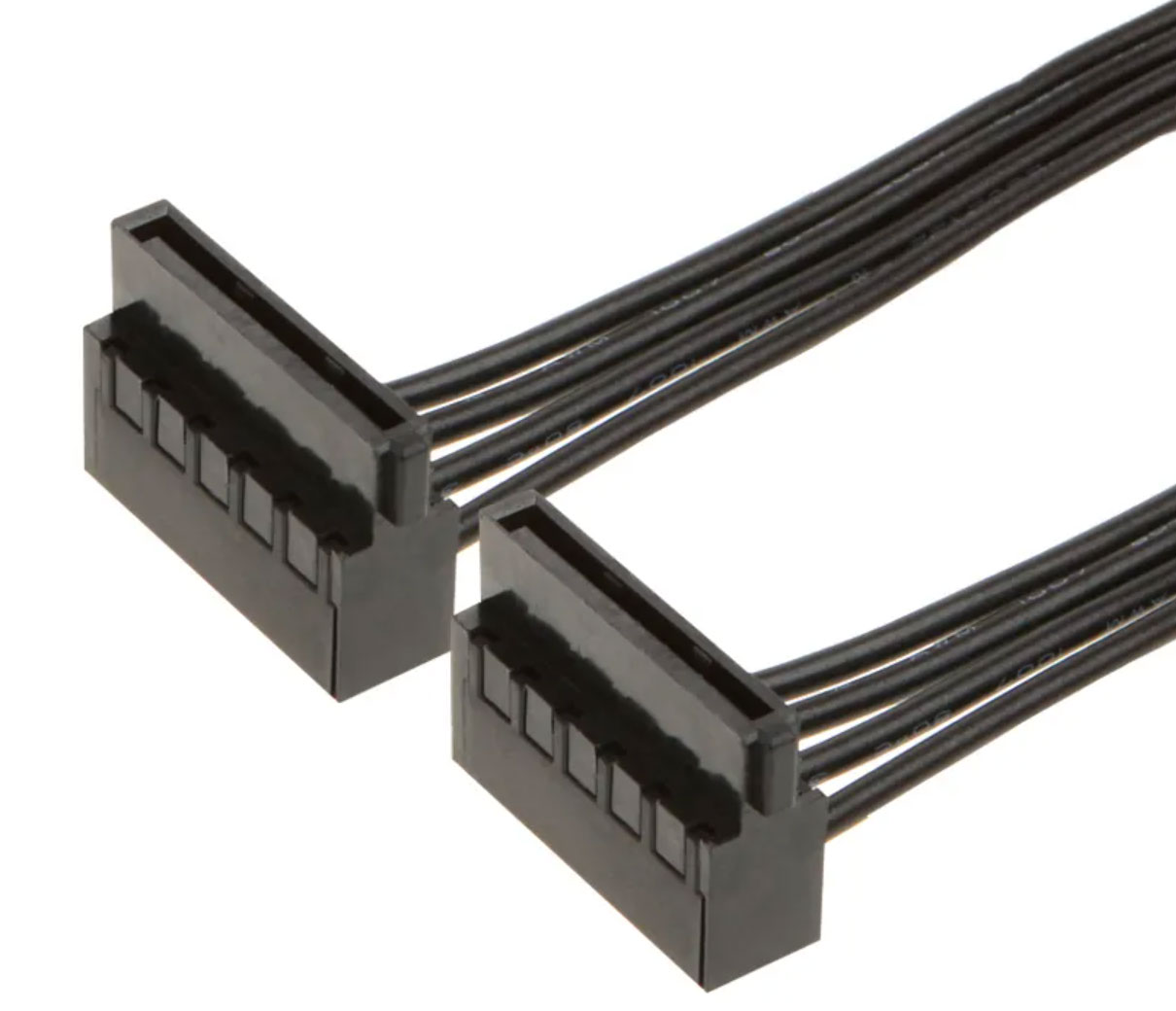

Plug the controller’s SATA power cable 1️⃣. Please note that both SATA power cables must be connected.
-
Take one of your components (LED strip or fan), plug to the Nollie controller 3️⃣ with a Female to Male adapter 4️⃣. This step is to test whether it works properly.
-
Turn on the computer: your component will immediately light up with green breathing effect, confirming successful installation.
-
Turn off the computer and install all remaining components.
-
If it does not light up, please do not continue to operate and contact support immediately.
Precautions
-
Do not plug the 9-pin USB cable into other interfaces.
-
Do not mix cables for fully modular PSUs (for example: ASUS PSU with Corsair power cable).
Photo credit: CoffeeStax -
Do not plug the motherboard 5V 3-pin into the controller.
-
Do not plug the motherboard 4-pin RGB into the controller.
-
When installing ARGB components, be sure to turn off the power and unplug the power cord.
